Energy Storage Systems
Energy Storage Systems
In the traditional energy model, electricity must be consumed at the moment it is generated. Energy Storage Systems (ESS) resolve this supply-demand imbalance, making energy safer, more affordable, and more accessible.
Uninterruptible Power Supply
Power outages caused by infrastructure failures or maintenance work reduce living comfort and can halt commercial operations. Storage systems act as a giant UPS (Uninterruptible Power Supply) that activates instantly when the grid goes down.
Terapec charging solutions offer a wide range of options, from individual solutions for homes to ideal choices for corporate fleets. With various models such as Powerpack Max and Powerpack Pro, you can choose the model that best suits your needs and benefit from our sustainable, low-cost solutions.
120 kW – 240 kW Voltage Range
Protection Against Grid Fluctuations
Protection Against Grid Fluctuations
Protection Against Grid Fluctuations
Protection Rating up to IP54
Not sure which model suits your needs?
Energy Storage System (CE / UL / JIS)
120kW
5-Meter Cable Length
Touchscreen Display
CE Certified
Flexible configuration structure
Thanks to its flexible configuration structure, the capacity can be scaled from 5.1 kWh up to 20.4 kWh by adding additional modules to the base unit.
Offers more than 6,000 cycles (cycle life) and is covered by a 10-year warranty.
Uses Lithium Iron Phosphate (LiFePO4) cells with high thermal stability. It offers more than 6,000 cycles at 70% capacity retention (EOL) and is covered by a 10-year warranty.
150V-1000V
With a wide output voltage range of 150V–1000V, it meets the requirements of a wide variety of vehicle types, from passenger cars to heavy-duty vehicles.

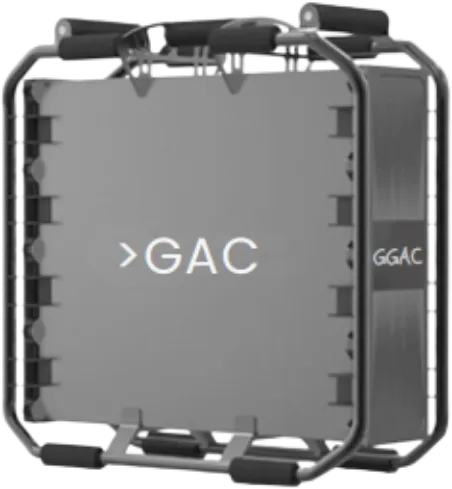

Powerpack Max
240/210 180/150/120 kW
5-Meter Cable Length
IP54 Protection
CE Certified
Power heavy-duty tools and industrial equipment without interruption.
With a nominal output power of 3600W, the device can reach an exceptional peak power of up to 18 kW during instantaneous loads (inrush current), allowing it to operate heavy-duty tools and industrial equipment without interruption.
High energy storage capacity and over 3,000 cycle life
Designed using high-density NCM 21700 battery cells. This technology provides high energy storage in a compact size and a cycle life of over 3,000 cycles.
IP54 Protection Rating
With an IP54 protection rating, it is resistant to water splashes and dust. Thanks to its Natural Cooling system, it can operate within a discharge temperature range of -20°C to 65°C without fan noise or dust intake.
Power your electronic devices safely with grid-quality electricity.
By generating a Pure Sine Wave output, it powers your sensitive electronic devices safely with grid-quality electricity.

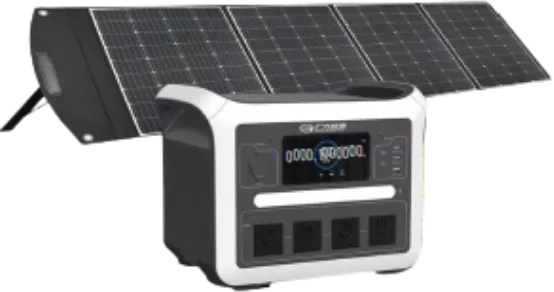

Powerpack Pro
120kW
5-Meter Cable Length
Touchscreen Display
CE Certified
Extends the device’s service life by 4–5 times compared to its competitors.
It uses LiFePO4 cells, which are much more heat-resistant and safer than conventional lithium batteries. This technology offers more than 2,000 charge cycles, extending the device’s service life by 4–5 times compared to its competitors.
Provides charging in a very short time with 1200W AC fast charging support.
Provides charging in a very short time with 1200W AC fast charging support via the grid. It also supports up to 400W DC input (solar) within an 11–55V range for solar charging, enabling completely independent energy generation in outdoor environments.
Power medium- to high-power devices.
With a 1650W nominal AC output power and 2700W instantaneous peak power, it can operate medium- to high-power devices such as a mini refrigerator, coffee machine, and power tools.
Ensures that sensitive electronics operate without damage.
By generating a Pure Sine Wave output identical in quality to grid electricity, it ensures that sensitive electronics such as computers and medical devices operate without damage.
Areas of Use

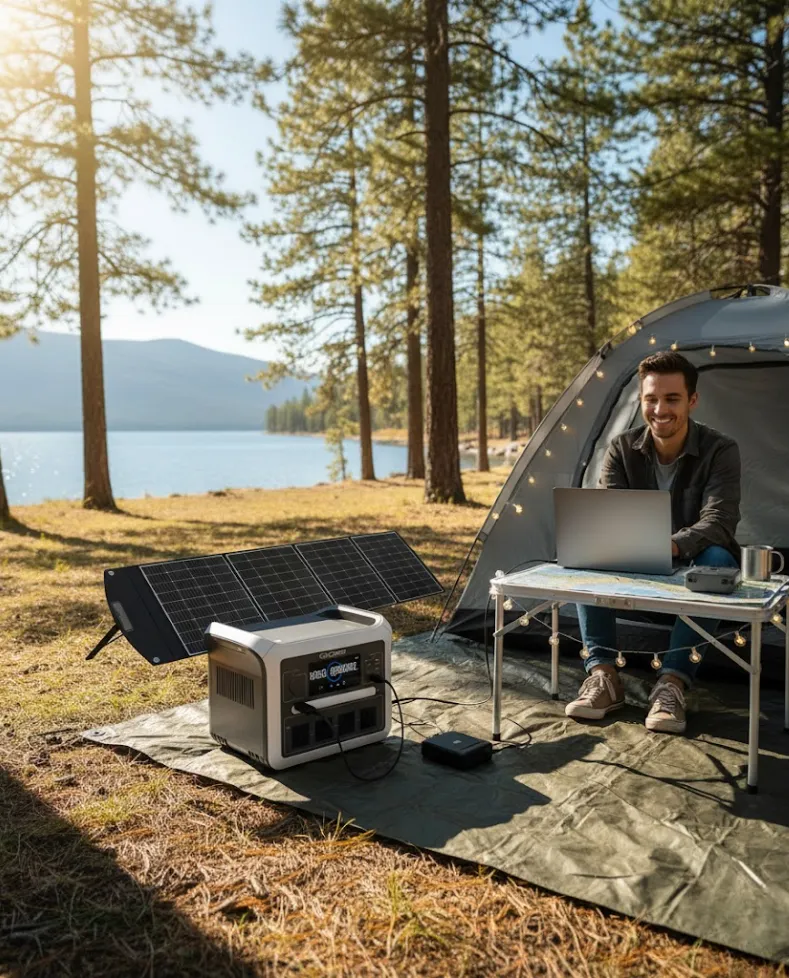

Camping and Outdoor
Don’t compromise on your comfort in nature. Run equipment such as an electric grill, lighting, and an air mattress pump for hours.

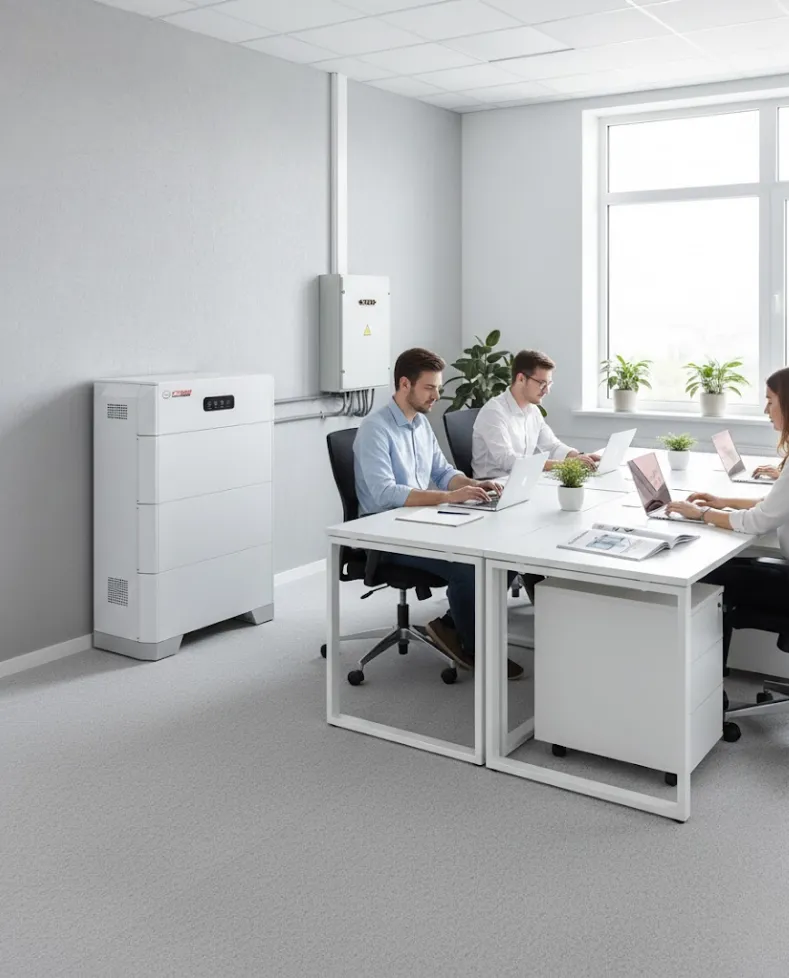

Offices and Workplaces
Smart management that reduces operating costs by charging from the grid during low-cost nighttime hours and using the stored energy during expensive daytime hours.

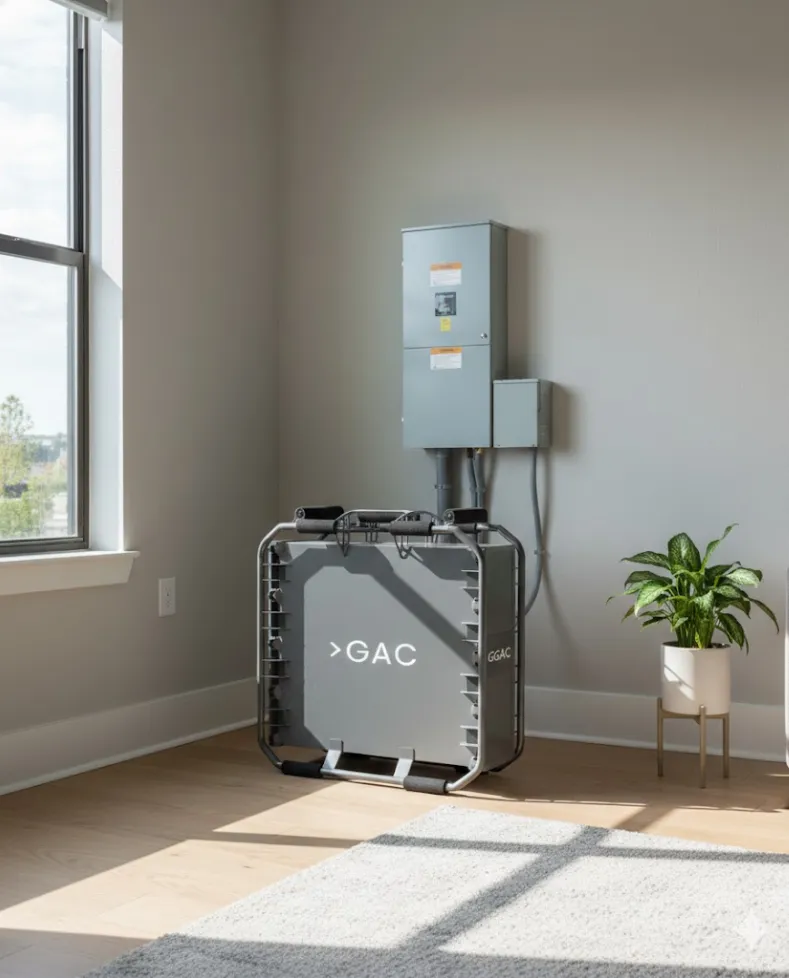

Individual and Multi-Unit Residences
An optimized system that stores energy when it is cheaper during the day and uses it in the evening to minimize electricity bills.
How Is the Charging System
Installed?
1. Site Analysis and Capacity Assessment
Before installation, the capacity of the electrical panel should be checked and the most efficient location for the charging unit should be determined. It should be ensured that the existing energy load can meet the current required by the charging station.
2. Electrical Infrastructure Preparation
For safe charging operation, a dedicated and independent line should be installed for the station. At this stage, appropriately sized cables and protection equipment must be installed in accordance with technical standards to prevent system overload.
3. Physical Installation and Safety
The device should be secured using mounting equipment suitable for the floor or wall structure. After installation, safety tests such as residual current protection, grounding measurements, and insulation of connection points must be carefully completed.
4. Software Configuration and Commissioning
After the hardware installation is completed, the device’s internet connection and smart management systems should be configured. Following a final overall check, the system should be put into operation and access should be tested via the user interface.
Can I expand the system later if my home’s energy needs increase?
- Yes, our system features a “Stackable” modular design. You can start with a single 5.1 kWh module and increase the capacity up to a maximum of 20.4 kWh by adding additional modules as your energy needs grow. There is no need to replace the entire system for this upgrade.
How long can this battery system provide power during a blackout?
- This duration depends on your current energy consumption and battery capacity. For example, a 10.2 kWh system can continuously power critical loads such as an average refrigerator, lighting, a modem, and security systems for approximately 10–12 hours (depending on usage intensity).
What is the difference between LFP (Lithium Iron Phosphate) batteries and other lithium batteries?
- LFP chemistry offers significantly higher thermal stability and safety compared to conventional Lithium-ion (NMC/NCA) batteries. It is also more durable; our system provides more than 6,000 charge/discharge cycles at 70% capacity retention, corresponding to an approximate service life of over 10 years.
Can I install the device outside my home (in the garden or on the balcony)?
- Yes. The unit’s enclosure has an IP65 protection rating. This means the device is fully protected against dust and resistant to low-pressure water jets from any direction. It can operate safely in outdoor environments within a temperature range of -20°C to +50°C.
Does the device make a lot of noise while operating?
- No. The system features “Natural Cooling” technology, meaning it does not contain noisy operating fans. It dissipates heat through its passive cooling корпус, ensuring a quiet operating environment indoors or in the garage.
I have solar panels (PV); is it compatible with this system?
- Absolutely. The system supports “Self-Consumption” mode. It stores excess energy generated by your solar panels during the day that is not consumed in your home. In the evening, when the sun sets, it allows you to use this stored, free energy instead of purchasing electricity from the grid.
How does the “Peak-Valley” feature reduce my electricity bill?
- You can charge the battery from the grid during low-tariff nighttime hours (Valley) and use the stored energy during expensive evening peak hours (Peak), thereby reducing the amount of costly electricity drawn from the grid. The system can be programmed to manage this process automatically.
Which devices can Powerpack Max operate?
- With a continuous output power of 3600W and a peak power capacity of 18 kW, it can even operate devices with high inrush current such as welding machines, heavy-duty drills, electric saws, and industrial fans.
Can I use the device in rainy weather or dusty environments?
- Yes, Powerpack Max has an IP54 protection rating. This means the device is protected against water splashes from any direction and against dust ingress, making it suitable for outdoor field operations.
What are the charging time and method?
- Cihazlarımız, standart şebeke elektriği (230V AC) üzerinden maksimum 1300W güç ile şarj edilebilir. NCM batarya teknolojisi sayesinde hızlı şarj yeteneğine sahiptir.
